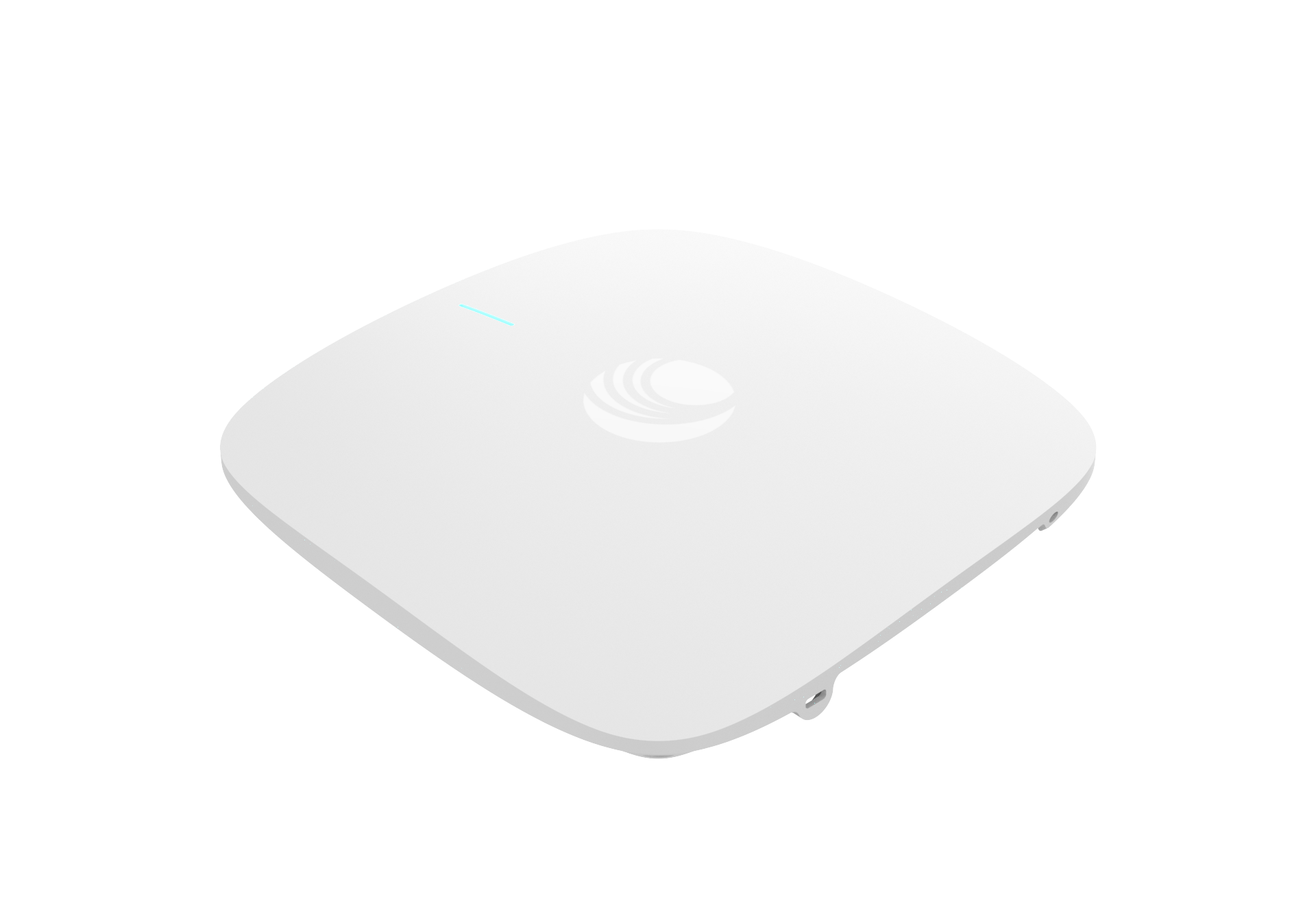

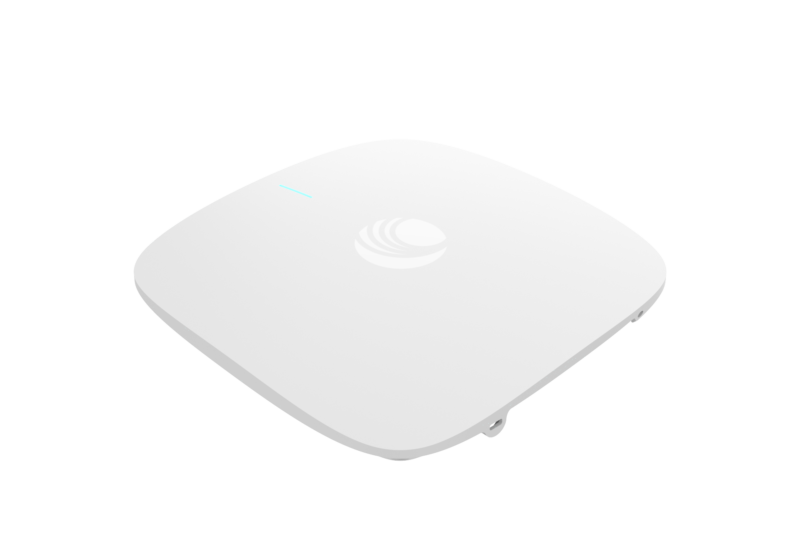

Cambium XE3-4 Wi-Fi 6E Access Point

Enterprise grade software-defined access point

The XE3-4 is a tri-radio Wi-Fi 6/6E 4×4/2×2 access point (AP) designed to deliver future-proof performance and value for building next generation networks. Wi-Fi 6 delivers faster and more efficient wireless network connections than previous generation Wi-Fi technologies.

Access Point Specs:

5 GHz/6 GHz: 802.11a/n/ac/ax, 4×4 SW configurable 5 GHz: 802.11 a/n/ac Wave 2/ax, 2×2 2.4 GHz: 802.11 b/g/n/ax, 2×2  BLE 4.1

802.11a/b/g/n/ac Wave 2/ax

SSID Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open

6 GHz: 6.29 dBi, Omni, 5 GHz: 6.12 dBi, Omni, 2.4 GHz: 4.85 dBi, Omni

Network Specs:

1,500 clients, 16 SSIDs WPA-TKIP, WPA2 AES, WPA3 SAE, WPA3 Enterprise, 802.1x, 802.11w PMF

Authentication Encryption
Hotspot 2.0 802.????x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or external RADIUS

Subscriber QoS

Fast Roaming
802.11r, OKC, assisted roaming



Designed for High Density and Edge Services

Wi-Fi 6E extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 Wi-Fi 6E access point enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode when sufficient 6 GHz clients are available.

The XE3-4 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management

XE3-4 operates with either Cambium Networks’ XMS or cnMaestro management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Limited Lifetime Warranty

The XE3-4 Wi-Fi 6E access point comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.
